Chafe Chain for mooring/emergency towing according to 2007 OCIMF Recommendations




© OCIMF 2007
AVAILABLE WITH IACS CLASS CERTIFICATE




Chafe Chain for mooring/emergency towing according to IMO resolution MSC 35(63) del 20-05-94

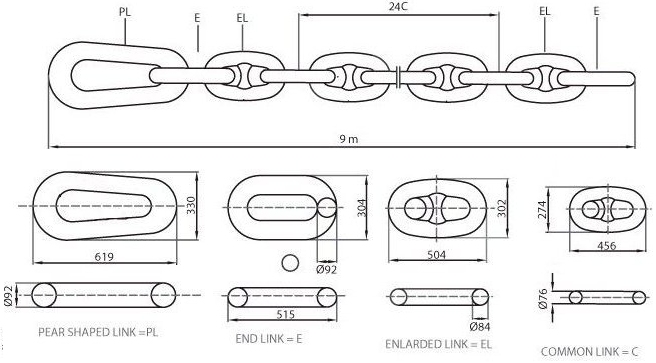

Chafe chain DIA 76mm Grade 3




Nominal Diameter: 76 mm
Grade: 3
Execution: bituminous paint
Total lenght: about 9 meters
Coomposition: Pear shaped link + End link + Enlarged link + 24 Common Links + Enlarged Link + End Link
Proof load: 3010 Kn
Breaking load: 4300 Kn
SWL (according to IMO): 2150 Kn

AVAILABLE WITH IACS CLASS CERTIFICATE

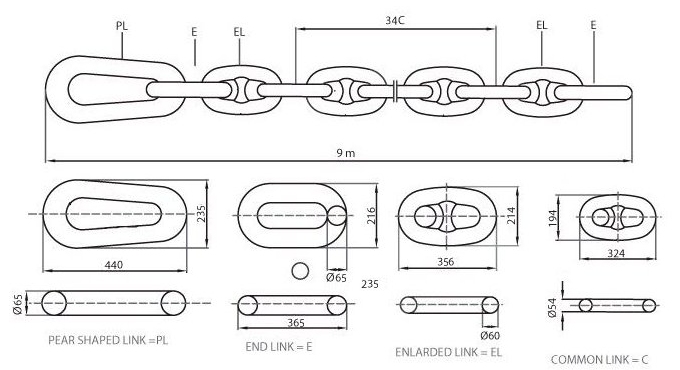

Chafe chain DIA 54mm Grade 3







Nominal Diameter: 54 mm
Grade: 3
Execution: bituminous paint
Total lenght: about 9 meters
Coomposition: Pear shaped link + End link + Enlarged link + 34 Common Links + Enlarged Link + End Link
Proof load: 1590 Kn
Breaking load: 2270 Kn
SWL (according to IMO): 1135 Kn

AVAILABLE WITH IACS CLASS CERTIFICATE
