Emergency Towing Arrangements E.T.A.




CLICK TO ENLARGE


CLICK TO ENLARGE

PDF documents
Complete list of PDF documents about E.T.A.
» Click here...


Hermes (aft) and Heracles (fwd) and Zeus (fwd) are the smallest, cheapest, easiest emergency towing arrangements type approved by all major Registers and fully complying to I.M.O. resolution MSC35(63) of 94.05.20 and O.C.I.M.F. recommendations.

The main components of the two models, 1.000 kN and 2.000 kN are :
  • Pick-up gear
  • Panama chock
  • Strong point
  • Deploying drum
  • Bow arrangement

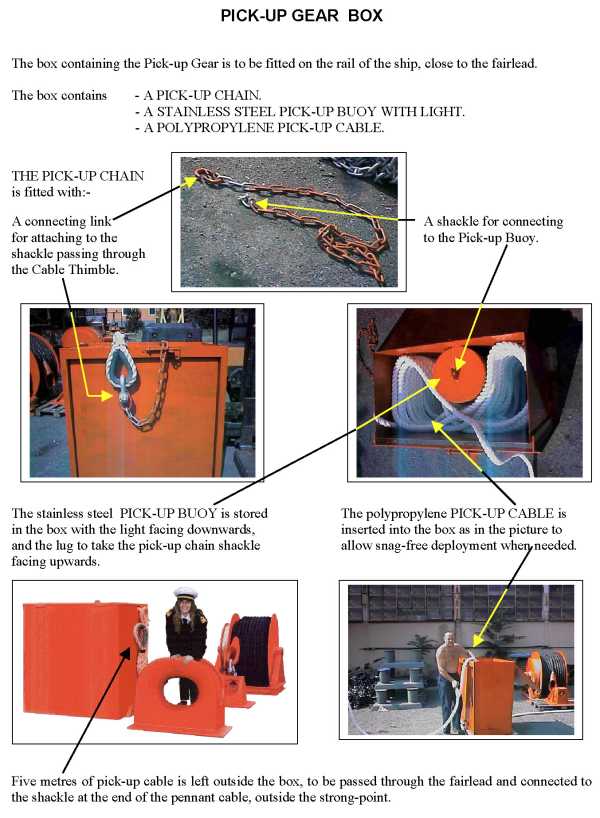

Pick-up gear

This box is installed at stern and contains the light buoy, the messenger rope already connected to the towing steel wire rope.
One man only unlocks the cover just before abandoning the ship and from this point further all operations can be managed by the tug, because the lights buoy fells down awaiting for the tug.


CLICK TO ENLARGE
  Panama chock

The Panama chock is tested according both to I.M.O. and O.C.I.M.F. requirements. It is type approved, wich means that the prototype has been tested at our testing bench at 1962 / 3924 kN at 30 / 60 / 90 degrees pull.
Most of the Panama chocks existing at bow and stern of the tankers are fully workable for general mooring purposes but they do not comply to I.M.O. requirements, so they must be replaced with approved ones.

Strong point

This strong point can be opened into two parts to enable the hawsing of the steel wire rope. The prototype has been tested at our testing bench at 1962 / 3924 kN at the presence of American bureau of shipping, Bureau veritas, Class NK, Det norske veritas, Lloyd's register of shipping, Rina. It must be inserted in the deck, after dwg approval by the classification company.

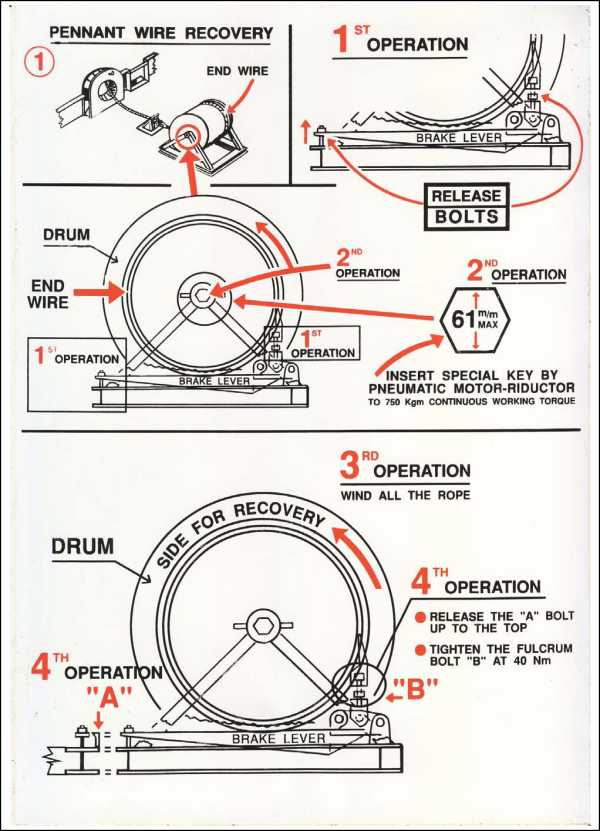

  Deploying drum

95 /120 m of steel wire rope dia 54 / 76 mm are stored on the drum, ready to be deploied, controlled by the automatic brake, in les that 15 minutes, as ruled by I.M.O. (Our prototype deployment test has been completed in 11 minutes, at the presence of American bureau of shipping, Bureau veritas, Class NK, Det norske veritas, Lloyd's register of shipping, Rina.
Bow arrangment

Tongue type chain stopper S.W.L. 200T/250T/350T suitable both for OCIMF mooring chafing chain dia 76 grade 3 and IMO towing chafing chain (dia 54 or 76 mm) c/w drilled base and seating (standard height of seating = 350 mm.)

Towing chafing chain in high tensile steel grade 3, length abt 8 m., one end with open end link and other end fitted with standard open pear shaped link.
