HV - Pool N type - High Holding Power

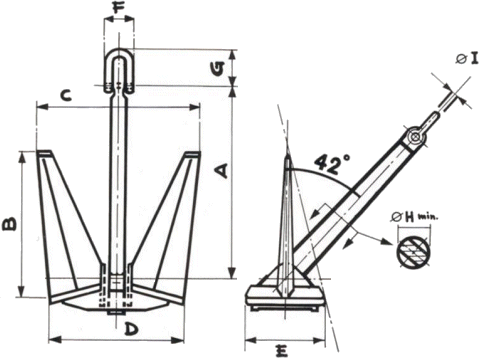

All sizes are in mm. Test certificates: ABS, BV, DNV, LR, RINA.

Kg	A	B	C	D	E	F	G	H	I
60	650	500	560	470	260	80	100	110	20
70	690	450	580	500	280	90	110	120	23
80	720	540	610	520	290	90	120	120	23
90	740	560	630	530	300	90	120	120	23
105	790	600	670	570	320	100	130	130	26
125	830	630	710	600	330	100	130	140	26
136	850	650	720	610	340	100	130	140	26
145	870	660	740	620	350	100	130	140	26
160	900	680	770	650	360	110	150	150	29
180	940	710	800	670	380	110	150	150	29
200	970	740	830	700	390	120	160	160	32
225	1010	770	860	730	410	120	160	160	32
240	1040	790	880	750	420	120	160	170	32
270	1080	820	920	770	430	130	180	180	36
315	1140	860	970	820	460	130	180	180	36
360	1190	900	1010	850	480	130	180	190	36
400	1230	930	1040	880	490	150	200	200	40
430	1260	950	1070	900	500	150	200	200	40
480	1300	990	1110	930	520	150	200	210	40
495	1320	1000	1120	950	530	150	200	210	40
520	1340	1010	1140	960	540	160	210	210	45
560	1370	1040	1170	990	550	160	210	220	45
585	1390	1050	1180	1000	560	160	210	220	45
600	1410	1070	1190	1010	560	160	210	230	45
640	1440	1090	1220	1030	580	160	210	230	45
675	1460	1110	1240	1050	590	160	210	230	45

	HV - Price List
	Price List for: HV welded, cast steel, stainless steel, tarred, HDG...

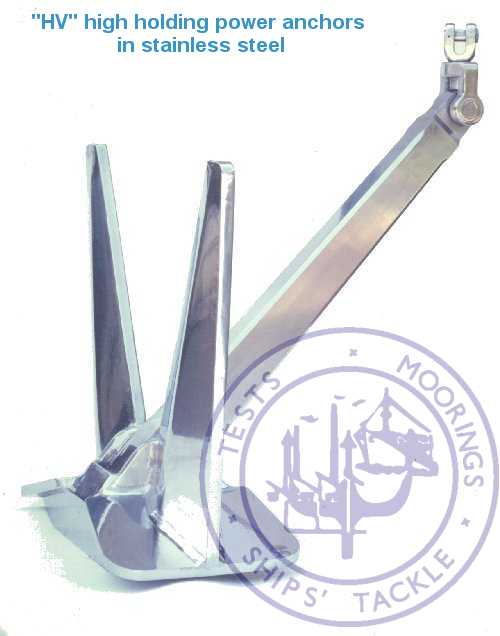

	THE QUEEN "HV" HHP anchor in stainless steel

	Neptunia Swivel crown shackle
	Swivel crown shackle Neptunia Type, to be used instead of normal crown shackle and swivel forerunner... » Read more...

☎
✉
