Jaw eye and Missing Link
JAW EYE
|
|
|
All sizes are in mm - test certificates: factory certificate
| size |
bl
KN |
B |
C |
D |
E |
L |
price |
| 6,4 |
18,9 |
22,4 |
19,1 |
6,4 |
11,9 |
66,8 |
7,11 |
| 7,9 |
27,8 |
22,4 |
25,4 |
7,9 |
12,7 |
74,7 |
9,75 |
| 9,5 |
50,1 |
26,9 |
31,8 |
9,7 |
16,0 |
92,2 |
12,57 |
| 12,7 |
80,1 |
33,3 |
38,1 |
12,7 |
19,1 |
114,3 |
18,89 |
| 15,9 |
115,7 |
38,1 |
44,5 |
16,0 |
23,9 |
134,9 |
29,52 |
| 19,1 |
160,2 |
44,5 |
50,8 |
19,1 |
28,7 |
153,9 |
49,56 |
Prices in €ur VAT excluded to be confirmed
|

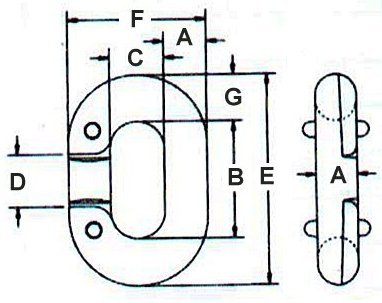

MISSING LINK
|
|
|
All sizes are in mm - test certificates: factory certificate
| size
|
bl
KN |
B |
C |
D |
E |
F |
G |
price galv
|
price inox
|
| 4,8 |
14,2 |
17,5 |
8,6 |
8,6 |
30,2 |
19,8 |
7,1 |
3,55 |
|
| 6,4 |
23,6 |
22,4 |
11,2 |
11,2 |
38,1 |
25,4 |
7,9 |
3,77 |
15 |
| 7,9 |
34,7 |
23,9 |
11,9 |
11,9 |
42,9 |
29,5 |
9,7 |
6,15 |
22 |
| 9,5 |
48,9 |
28,7 |
14,2 |
14,2 |
52,3 |
35,1 |
11,9 |
8,48 |
36 |
| 11,1 |
64,5 |
32,5 |
15,0 |
15,0 |
59,4 |
38,9 |
13,5 |
10,31 |
|
| 12,7 |
84,5 |
37,3 |
16,8 |
16,8 |
67,6 |
43,7 |
15,0 |
12,15 |
69 |
| 15,9 |
129,0 |
46,0 |
19,8 |
20,6 |
84,1 |
53,1 |
19,1 |
16,90 |
81 |
| 19,1 |
182,4 |
54,1 |
23,9 |
26,9 |
98,6 |
63,5 |
22,4 |
24,44 |
|
| 22,2 |
213,6 |
63,5 |
28,7 |
28,7 |
114,3 |
74,7 |
25,4 |
30,39 |
|
| 25,4 |
276,1 |
69,9 |
31,8 |
31,8 |
127,0 |
84,1 |
28,7 |
40,79 |
|
Prices in €ur VAT excluded to be confirmed
|
|
 |
