Multiangle fairleaders (4 - 6 - 7 rollers)


	CLICK TO ENLARGE


	CLICK TO ENLARGE

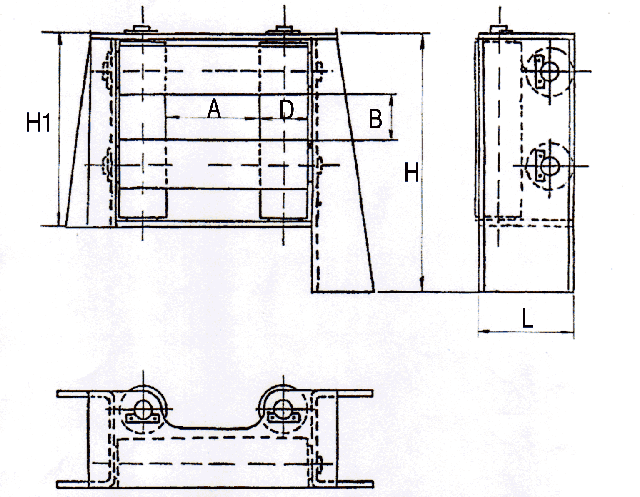

Multiangle fairleaders 2 + 2 rollers

Max rope diametre		A	B	D	H	H1	L
steel	polypropilene
24	44	210	110	108	590	470	220
30	52	240	130	133	690	530	260
34	60	280	150	152	780	570	295
40	72	290	190	168	900	680	330
46	80	300	200	194	970	750	385

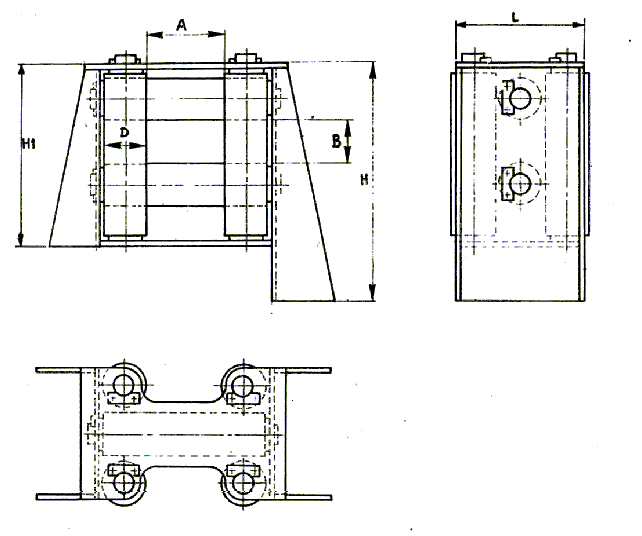

Multiangle fairleaders 4 + 2 rollers

Max rope diametre		A	B	D	H	H1	L
steel	polypropilene
24	44	210	110	108	590	470	330
30	52	240	130	133	690	530	400
34	60	280	150	152	780	570	455
40	72	290	190	168	900	680	500
46	80	300	200	194	970	750	585

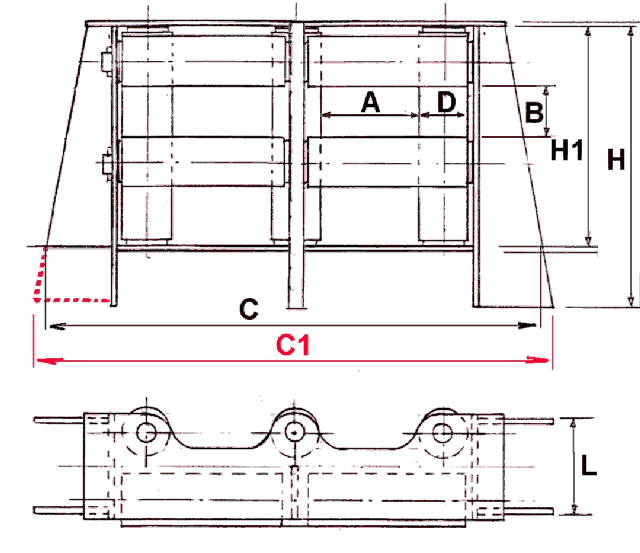

Multiangle fairleaders 4 + 3 rollers

Max rope diametre		A	B	C1	C	D	H	H1	L
steel	polypropilene
24	44	210	110	1235	1195	108	590	470	330
30	52	240	130	1350	1330	133	690	530	400
34	60	280	150	1570	1510	152	780	570	455
40	72	290	190	1640	1690	168	900	680	500
46	80	300	200	1790	1730	194	970	750	585

☎
✉
