Panama chock 600x450 deck and bow SWL 2000 kN

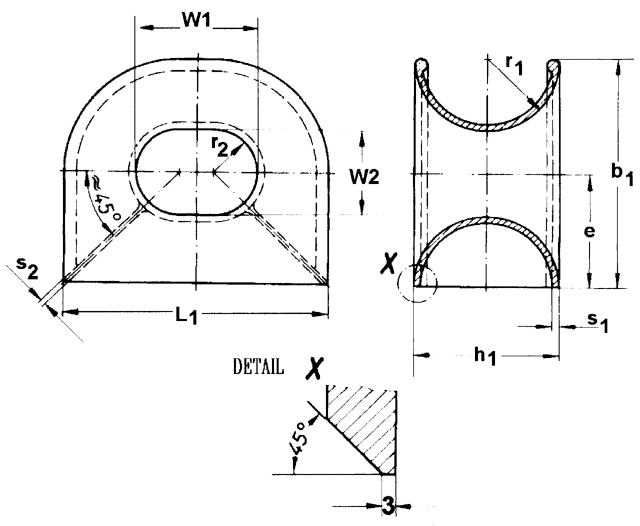

Panama chock 600 x 450 to be welded on deck SWL 2000 kN

b1	L1	e	h1	r1	r2	s1	s2	w1	w2
1150	1300	575	700	350	225	35	35	600	450

All sizes in mm - dwg 151/95 - 18.09.953 E.A.

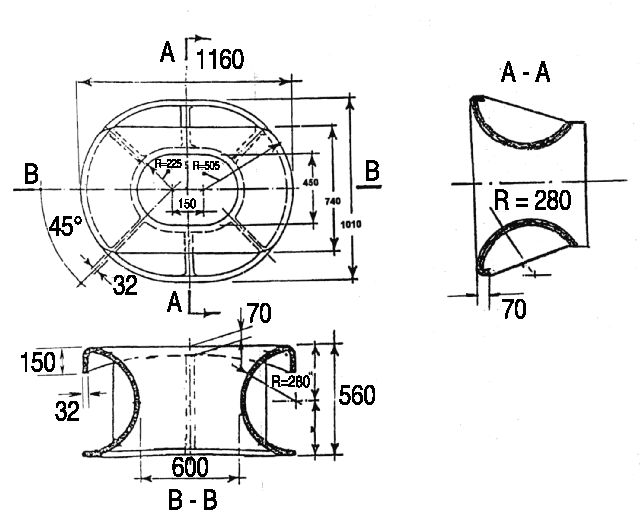

Panama chock 600 x 450 bulwark type SWL 2000 kN

All sizes in mm - dwg 121/93 - 5/2/93 CY

☎
✉
