Pedestal rollers IMO 1175

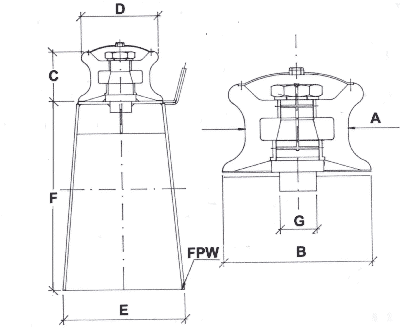

A (diameter)	B	C	D	E	F	G	Minimum Wire rope pull	SWL on roller throat
200	310	185	280	720	1100	80	107.9 kN	215.8 kN
250	380	249	340	720	1100	90	147.1 kN	294.2 kN
350	500	297	390	720	1100	125	323.7 kN	647.4 kN
450	620	320	620	720	1100	200	500.3 kN	1000.6 kN

	Roller detail - LOCKING NUT
	SEAMEN'S SAFETY IS OUR AIM! Locking nut is big enough to avoid the roller accidentally slipping out.

	RINA - ABS - RMRS
	Click HERE to see detailed DWG (PDF - printable version)

☎
✉
