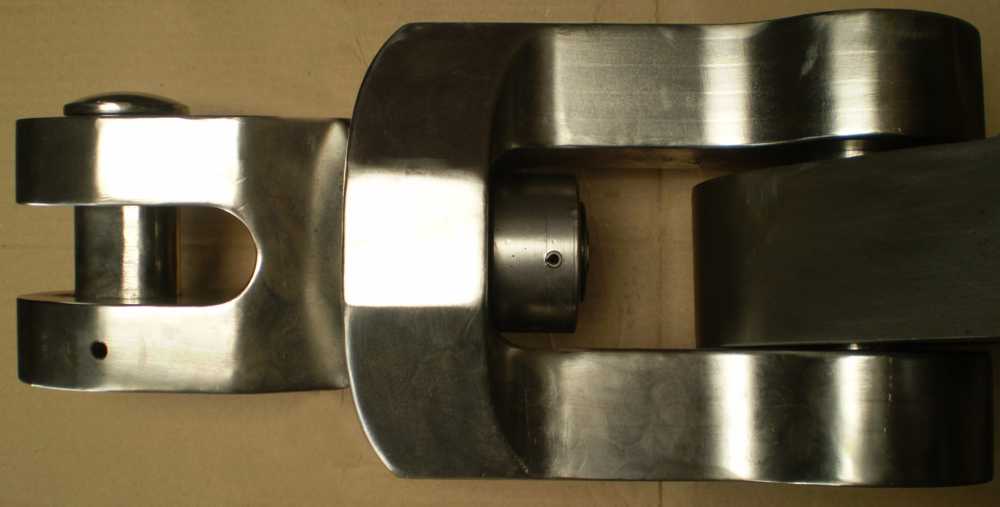

"Neptunia" swivel crown shackle for "HV" high holding power anchors for yachts

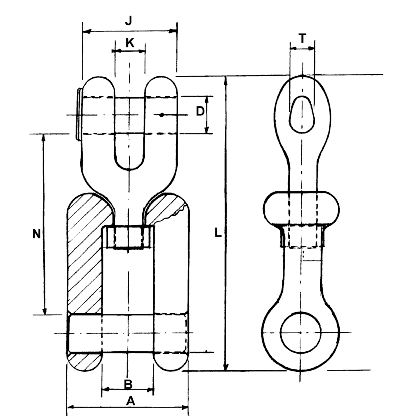

All sizes are in mm.

										LR certificate	factory certificate


possible	Mass of anchor Kg	A	B	N	J	K	L	D	T	galv.	inox
diametre of chain										€ur each	€ur each
in mm

											inox prices to be reconfirmed

Stud link 28-30-32	800-720	173	80	240	112	40	390	45	34	1.780	on request
Stud link 28-30-32	700-585	164	70	210	96	34	340	38	30	1.660	9.929
Stud link 24-26	560-495	153	65	190	88	31	310	35	27	1.551	9.532
Stud link 22-24-26	480-430	142	60	180	82	29	290	33	27	1.505	9.134
Stud link 19-20,5-22	400	142	60	175	76	27	285	30	23	1.406	8.578
Stud link 19-20,5-22	360	131	55	170	76	27	270	30	23	1.308	8.340
Stud link 19-20,5-22	315	131	55	160	70	25	265	28	21	1.211	7.943
Stud link 19-20,5-22	280-270	120	50	160	70	25	250	28	21	1.179	6.752
Stud link 17,5-19-20,5	240-225	120	50	150	64	23	245	26	20	975	4.670
Stud link 16-17,5-19	200-180	103	45	130	58	21	210	23	17	857	4.607
In verifica Being checked	160-145	98	42	136	77	21	226	30	17	663	3.177
studless 16-18	136-120	92	40	125	72	20	209	28	17	381	2.780
studless 12-14	105-80	82	38	110	62	18	185	25	15	340	2.423
studless 10-12-14	70-48	72	32	98	57	17	164	22	13	282	2.303

Prices in €ur VAT excluded to be confirmed

☎
✉
